Evo ET

Smart and Reliable Energy Soluions

G-BOX

20 to 50kW

Profitable small power plant

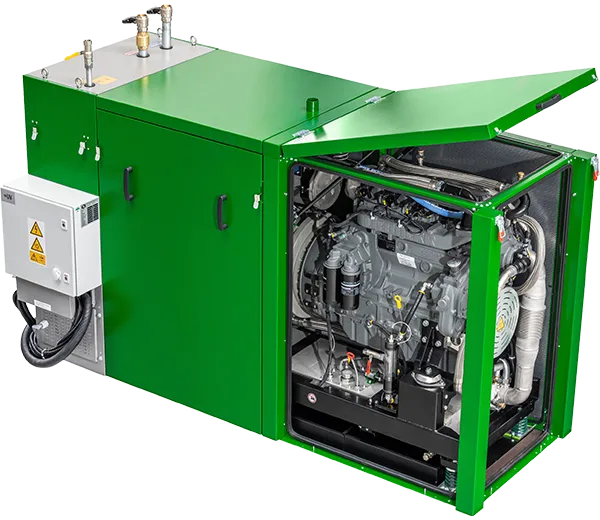

The g-box is the profitable small power plant by 2G ranging in electrical output from 20 to 50kW.  It's supplied as a connection-ready compact module.  The control cabinet with PLC controller and operating unit is designed as a seperate unit on the module. The g-box not only works extremely efficiently but it is also very quiet, thanks to the fully enclosed sound capsule.

Thanks to calorific value utilsation, both the g-box 20 and g-box 50 reach efficient levels of over 100 percent.

  • Natural gas CHP range with an electrical output of 20 to 50kW
  • Runs on natural gas or biomethane: g-box 20 also can run with liquid gas
  • Control cabinet with PLC controller and operating unit is designed as a separate unit on the module
  • Works extremely efficiently and quietly thanks to the fully enclosed sound capsule
  • Connection-ready, super-silent compact module
  • Very economical due to high thermal efficiency thanks to condensing technology
  • Long operating times, reliable and low-maintenance
  • Possible incorporation into tight building spaces due to its modular design
  • Completely water-cooled, no need for supply and return air thus reducing installation costs
G-box-product-image-page-720x550

RAPID INSTALLATION - COMPLETED IN LESS THAN 2 DAYS

With decades of established motor technology, the patruus is the most experienced member of the 2G power plant family. It is a robust and efficient supplier of electricity and heat and is available in the electrical output range up to 263 kW.

  • CHP range with an electrical output of 50 to 263 kW
  • Operation with natural gas or biogas
  • Designed as a turn-key compact module
  • High plant availability through established motor technology
  • Available both with aspirated motors and with turbocharged motors
  • Modular assembly facilitates installation in less accessible locations
  • Robust and low maintenance

The g-box at a glance.

Profitable small power plant

Product Catalogue

DOWNLOAD NOW

Make an Enquiry

ENQUIRE NOW

Product Gallery

Fields of use for the g-box

The g-box is suitable for commercial buildings or entire housing complexes with heating consumption of at least 120,000 kWh or at least 12,000 litres of heating oil a year. Typical areas of use are:

  • Hotels
  • Senior citizen centres and hospitals
  • Schools and kindergartens
  • Shopping centres
  • Swimming pools
  • Administrative buildings
  • Housing complexes

g-box.  Natural gas 20 to 50kW

Type Output Efficiency level
Configuration Electrical Thermal Electrical Thermal Overall
g-box 20 as22-4 20kW 44kW 32% 70.4% 102.4%
g-box 50 as80-4 50kW 100W 35.4% 68.6% 103.1%

Patruus. 263 kW. Natural Gas

Patruus 140 - as80-0

Output

  • Electrical
  • 140 kW
  • 263 kW
  • Thermal
  • 207 kW
  • 380 kW

Effeciency Level

  • Electrical
  • 36.5%
  • 38.0%
  • Thermal
  • 53.9%
  • 54.9%
  • 90.4%
  • 92.9%

Patruus. 50 to 64 kW. Biogas

Patruus 140 - as80-0

Output

  • Electrical
  • 140 kW
  • 263 kW
  • Thermal
  • 207 kW
  • 380 kW

Effecientcy Level

  • Electrical
  • 36.5%
  • 38.0%
  • Thermal
  • 53.9%
  • 54.9%
  • 90.4%
  • 92.9%

Additional Equipment

Evo Energy Technologies offer a wide range of additional equipment including:

  • Addition of gas
  • Additional heat applications
  • Heat storage distribution
  • Data interfaces
  • Mains back up & starter device
  • Warm country version
  • Exhaust gas post-treatment
  • Variants of oil supply
  • Measurement instrumentation

To see our full range of equipment click below.

CLICK HERE

Rapid installation - completed in less than 2 days

2G Easy Plug & Play Solutions

Featured Projects

Teys-Australia-Biogas-Cogeneration-project-1

Teys Australia Naracoorte Biogas Cogeneration Project

Teys Australia is one of the largest beef producers in Australia.  They have recently partnered with Evo Energy Technologies and installed a Biological Scrubber and a 2G Avus500plus 550kW Biogas Cogeneration engine in a 7m x3m x3m container module with gas dehumidification and active carbon filtration.  Teys Australia can expect 2,500MWh of renewable energy yearly due to their new infrastructure.

VIEW PROJECT
Rivalea Australia CHP

Rivalea Biogas Cogeneration Project

Rivalea (Australia) Pty Ltd is one of Australia’s leading pork producers. In 2017 Rivalea fulfilled a long term goal to harness the power of the naturally occurring methane generated in its waste water treatment ponds. The successful implementation of a custom-built 500 kW combined heat and power unit in partnership with Evo Energy Technologies and 2G Energietechnik achieves significant cost savings, reduces environmental impact and takes load from the grid which is then available to other users.
